The application of fiber laser cutting machines has brought great changes to metal manufacturers in improving work efficiency and cutting accuracy. The laser head nozzle is installed at the front end of the fiber laser cutting head, which helps to control the auxiliary gas and protect the focusing lens.

The size of the nozzle diameter determines the shape of the airflow entering the incision, the gas diffusion area, and the gas flow rate, which affects the removal of the melt and the stability of the cutting. The larger the airflow entering the incision, the faster the speed, and the proper position of the workpiece in the airflow, the stronger the ability to spray and remove the melt.

In the actual operation of the fiber laser cutting machine, when the nozzle and the laser output beam are not coaxial, in order to ensure effective cutting and avoid problems such as too wide cutting seams, nozzle damage, and melting stains on the cutting surface, the laser needs to be adjusted to the center of the nozzle. The following is the adjustment method for your reference.

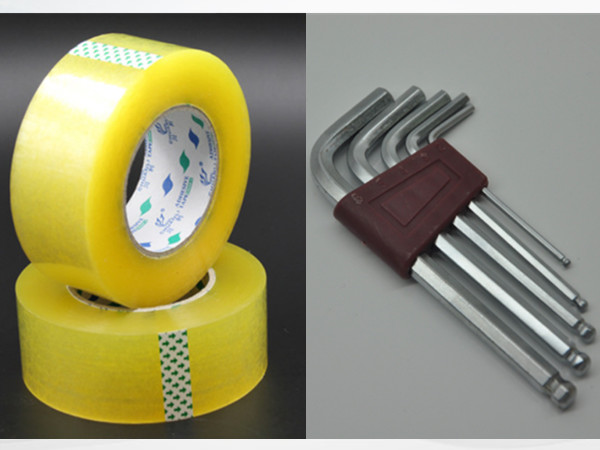

Preparation: transparent tape, hexagonal key

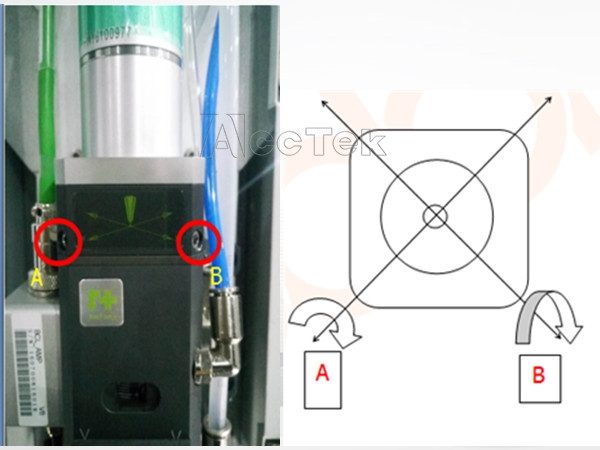

Principle: The left side of the picture shows where the laser head is adjusted, and the right side shows the corresponding cross-sectional view. The laser head adjusts the center of the light to move diagonally. By adjusting A and B clockwise with an Allen wrench, the laser center point will move away from the wrench; similarly, by adjusting A and B counterclockwise, the laser center point will move to the side close to the wrench.

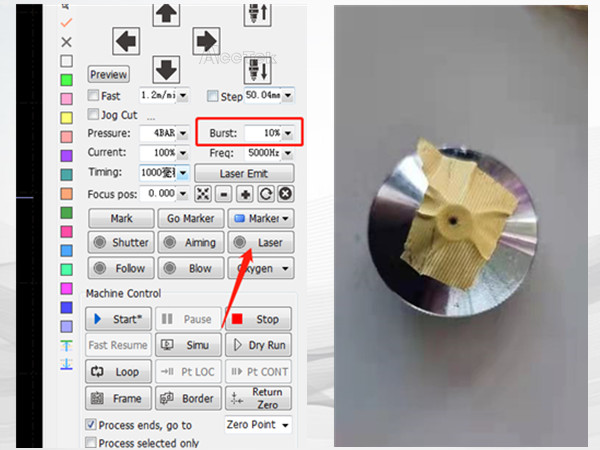

Operation steps: Put a piece of transparent tape on the nozzle, set the power to 10%-15% in the software, and then press Pulse/Laser to check whether the laser hole is in the center of the nozzle. If it is not in the center, adjust it to the center.

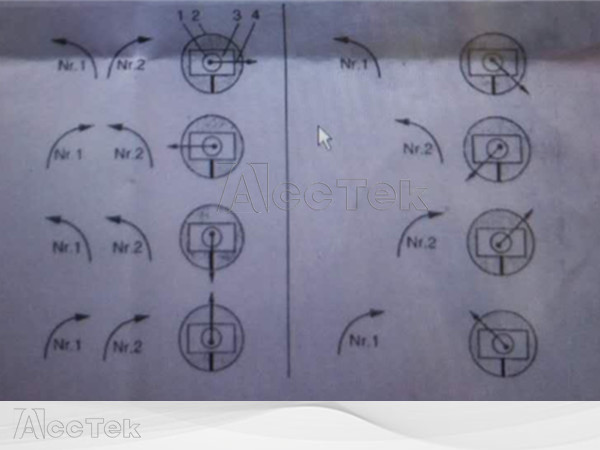

Tip: Here are some common adjustments.

For fiber laser cutting machine operators, the adjustment of the optical path is very important, and its adjustment process is also complicated. Therefore, you must be careful when adjusting the laser optical path. Only careful settings can ensure that the fiber laser cutting machine equipment runs with high precision.
